Sonex, LLC approves several different engines for its airframes, and offers firewall-forward support for those engine options, ranging from engine mounts and cowlings, to complete installation manuals:
AeroVee | Jabiru | UL Power | Rotax 912 | Zaero Electric | PBS TJ-100
AeroVee Engines
Sonex Aircraft were originally designed to utilize the AeroConversions AeroVee or similar engines, and the AeroVee is the most-popular engine choice for Sonex builders. The AeroVee is a complete VW Conversion Engine Kit Package offered in 80 hp and turbocharged 100 hp versions, by AeroConversions, a product line of Sonex, LLC.
The AeroVee Engine Kit continues the Sonex Aircraft tradition of simple, elegant design. A 2180 cc aero-engine that can be run on 100LL or auto fuel, all of the supplied components are brand-new, zero-time parts.
The AeroVee comes as a complete kit that you can assemble yourself in approximately 12 hours, with the aid of an AeroVee Assembly and Installation Manual and an instructional video series, along with free Technical Support. The AeroVee Video Series is available for purchase separate from the engine kit for those that wish to preview the project.
The AeroVee engine kit also includes the AeroConversions AeroInjector.
 AeroVee 2.1 80hp: $11,300 |
 AeroVee Turbo 100hp: $15,000 |
For More detailed information about the AeroVee, visit www.AeroConversions.com
|
|
|
|
|
|
|
|
|
|
|
|
|
AeroVee | Jabiru | UL Power | Rotax 912 | Zaero Electric | PBS TJ-100
Jabiru Engines
Sonex Aircraft has worked with Jabiru Engines for many years. In particular, the 120 hp Jabiru 3300 has become a very popular engine choice for our aircraft, making-up approximately one third of the worldwide fleet of flying Sonex Aircraft. Sonex Aircraft offers engine mounts for Jabiru 3300 engines (Jabiru 2200 mounts available for Legacy Sonex and Waiex aircraft), and our Sonex/Jabiru Cooling Baffle Kit and Installation Guide is available from our AeroConversions product line.
Sonex highly recommends the AeroConversions AeroInjector to replace the Jabiru-supplied Bing carb. Read more about the AeroInjector's advantages in "The $35 Hamburger!"
Jabiru Engines are sold and supported by Arion Aircraft.
|
|
|
|
|
|
|
|
|
|
|
AeroVee | Jabiru | UL Power | Rotax 912 | Zaero Electric | PBS TJ-100
UL Power Aero Engines
ULPower Engines have been developed specifically for use in light aircraft and are manufactured to the highest standards with fully electronic ignition and multi-point fuel injection (FADEC) system as standard equipment.
ULPower Engines feature dual electronic ignition (with variable timing), excellent power-to-weight ratio, and high fuel efficiency in a conventional configuration: Air-cooled, direct drive, horizontally opposed 4-cylinder.
All ULPower engines fly on avgas and auto fuel — even with mixtures up to 15% ethanol — and can be upgraded with back-up and safety systems.
Sonex Aircraft provides UL Power 260 and 350-series engine mount options for the new Sonex-B, Waiex-B, and Xenos-B models, and B-Model cowlings have been designed to accommodate UL Power 4-cylinder engines using UL Power's 110mm length prop hub with SAE-1 flange.
Kaolin Aviation (US Dealer for UL Power) has 3rd party support available for UL Power engine mounts to fit Legacy Sonex, Waiex and Xenos airframes and for Onex airframes. The Jabiru 2200 engine mount offered for Legacy Sonex Aircraft will fit UL260-series engines.
UL Power 260 and 350-series engines may be purchased from Sonex Aircraft, and technical support is offered by Kaolin Aviation. Engine packages include Exhaust, Baffle Kit, Alternator and Primary Fuel Pump.
*Note: All published prices subject to change with the USD to Euro exchange rate. Prices will be verified with UL Power and, if necessary, re-quoted upon receipt of your order.
 UL260i 97hp: $24,420* |
 UL260iS 107hp: $26,363* |
| UL350i 118hp: $27,520* |
| UL350iS 130hp: $28,860* |
|
Kit Includes:
|
|
|
|
|
AeroVee | Jabiru | UL Power | Rotax 912 | Zaero Electric | PBS TJ-100
Rotax 912-Series Engines
Rotax 912-series engines have become popular with some Sonex builders, particularly in international markets such as Europe and South America, and several customers have successfully made their own Rotax installations.

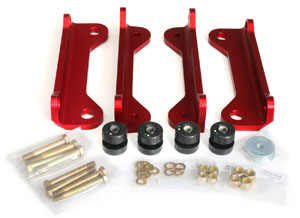

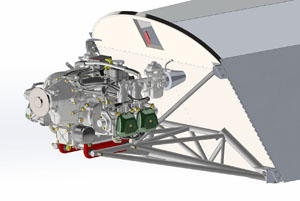

Although we do not sell Rotax engines, Sonex Aircraft provides Rotax 912-series engine mount options for the new line of B-Model aircraft, and B-Model cowlings have been designed to accomodate Rotax engines. Rotax 912-series engine mounts are also newly available for Legacy Sonex Aircraft. Sonex does not provide specific installation techical support for Rotax engines as there are many existing Rotax installation support sources already available.
|
|
|
|
|
|
|
|
|
|
|
|
AeroVee | Jabiru | UL Power | Rotax 912 | Zaero Electric | PBS TJ-100
For Xenos Only: Zaero Electric Propulsion
Sonex is pleased to offer motor/battery mounts for the Xenos Motorglider Zaero Electric Propulsion package!
Through his company, FLIT LLC, Zaero Electric Propulsion installation developer Gabe DeVault is providing motor mount/reduction drive units, throttle controllers and general advice to support other Xenos builders as-well as builders of other experimental aircraft types that can use this power package. Sonex now supports builders with airframe battery/motor mounts for installation of the Zaero system on Xenos and Xenos-B Motorgliders. Note that Sonex Aircraft does not consider the Zaero electric propulsion system to be suitable on the Sonex, Waiex, Onex or Sonerai sport aircraft models.
Learn More About the Xenos/Zaero Electric Propulsion Installation
|
|
AeroVee | Jabiru | UL Power | Rotax 912 | Zaero Electric | PBS TJ-100
For SubSonex Only: PBS TJ-100
The TJ-100 turbojet engine is produced by PBS Velká Bíteš of the Czech Republic, a large manufacturer of rotary machines with roots dating-back to 1814. The TJ-100 is designed for UAV, UCAV, experimental aircraft and motorized gliders with hundreds of units delivered since its introduction in 2008.
The engine is a true "plug & play" package featuring integral ECU, starter/generator and oil system, and ships complete for the SubSonex with engine instrumentation, throttle control, pre-wired harnesses and other installation components. The 258.53 lbf [1150 N] thrust engine continues to exceed the expectations of PBS designers and customers alike, with flawless performance and an outstanding service history, all backed by top-notch customer service. The TJ-100 can fit in a small crate to be economically shipped for service to the PBS factory.
Learn More about the PBS TJ-100 on the SubSonex Home Page!
|
PBS TJ-100 E3S: $75,000 Order Now! SubSonex PDF Order Form |
